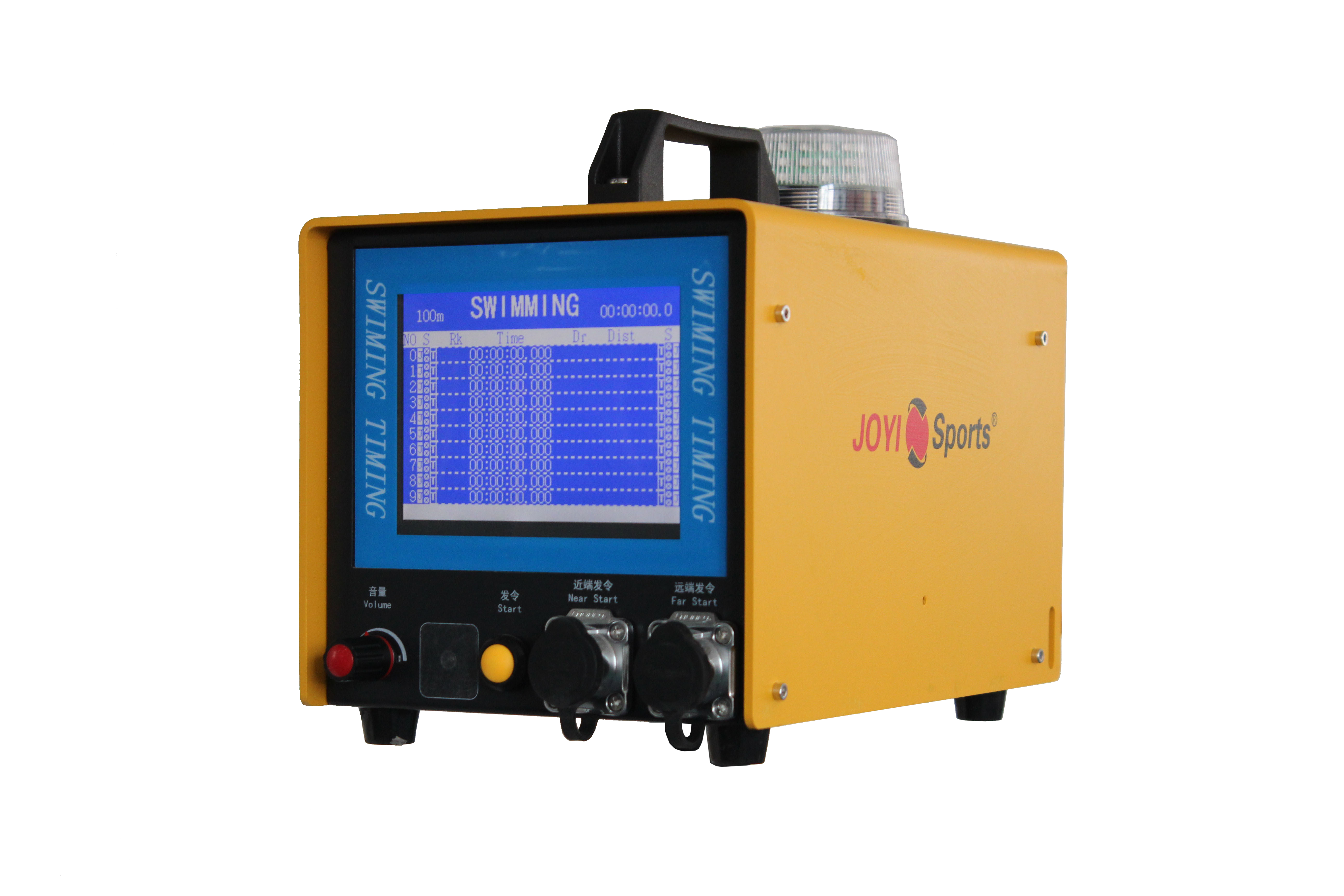

The master control host has two main functions: Starter and Timer

· Two ways to start the competition (gunshots or manual electric horns). The sound will be sent to each lane speaker at the same time.

· Has disaster recovery backup function. It is stable and error-free.

· Using CAN data bus pattern to achieve accurate timing and easy operation.

· Detect the working status of swimming pool and timing equipment through the host computer.

· Shows the results of each lane in swimming competition in real time on the 5-inch LED display.

· Has malfunction detection feature.

· Real time transfer all results on to the audience display screen through software.

· Powered by an uninterruptible power supply (UPS). When suffering a sudden power outage, the system can still operate for more than one hour.

Each time the athlete touches the touch pad during the competition, the printer prints out the current results and ranks. It is also support split timing for relay competitions.

Specifications:

1)  Dimensions: 26cm（length）*16cm（width）*17cm（height）

2)  Weight: 1.0kg

3)  Using 1PPM high-precision time oscillator, the time is accurate to 0.001s

4)  Real-time testing the touch pad, false start, push button and other hardware equipment status under test mode.

5)  5-inch HD LED high-resolution display.

6)  Shows the ranks, results, relay foul and touch time.

7)  Separate volume control and wireless output interface.

8)  Supports to connect with 20 of 45-watt lane speakers.

9)  External 360 degree high-brightness LED strobe light on top.

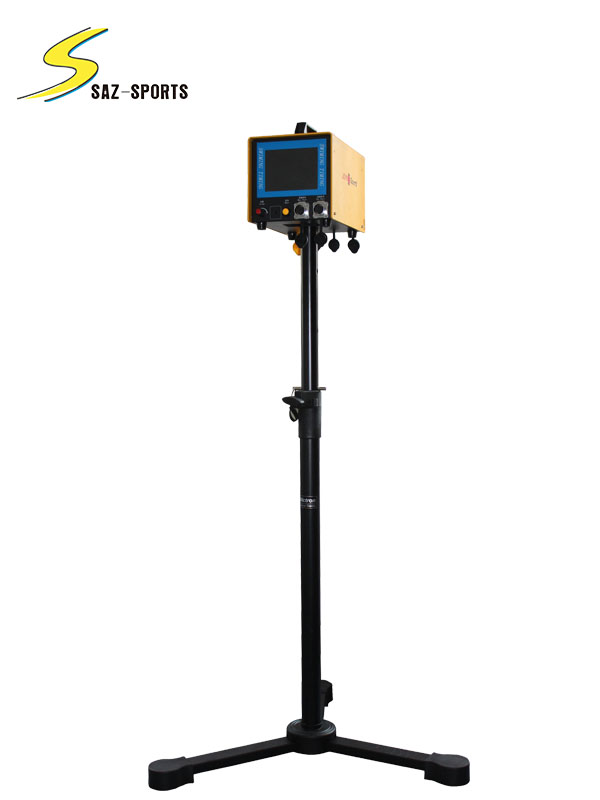

10)  Comes with a tripod, power supply (DC 24V 20A), data cables and build-in battery charger for the master control.

Accessories:

starting Microphone, external power supply box, connecting cable, Mic Extension cable, Lane speaker/module
