-The effective distance >18 meters.
-The visual range > 90 degrees.
Two cameras as a set have more than 180-degrees visual angles to ensure the full coverage of the swimming pool without any blind spots or dead ends.

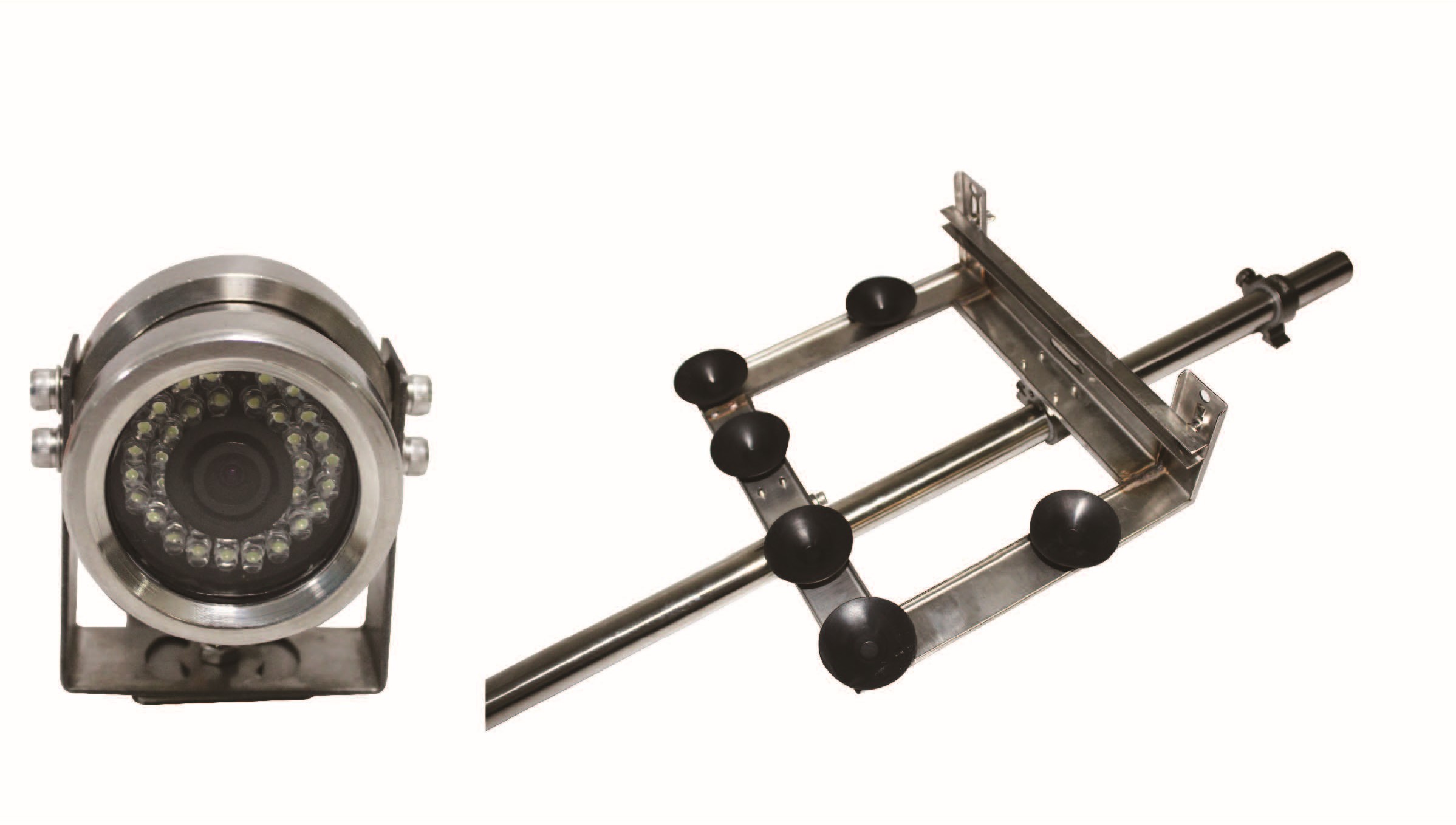

- Camera dimensions: 68.5 × 64.5mm.
- The camera is waterproof, chlorine resistant, corrosion-resistant.
- The camera uses integrated technology that can be directly placed in water without additional watertight capsules.
- 304 stainless steel body.
- Specification: 1080P, 60FPS/s.
1. Main Processor: Huawei HI Series 3516D High-Performance Low Power DSP.
2. Image sensor: 8 million 1/1.8-inch progressive scan CMOS.
3. Effective pixels: 1080P (1920 × 1080 60 frames compatible 2592 × 1920 30 frames).
4. Minimum delay: 0.1s, lens interface: CS.
5. Day and night conversion IR-CUT dual filter switching.
6. Signal to noise ratio is greater than 50dB.
7. Video compression standard H.265/JPEG, video frame rate 1-60FPS.
8. Dual-stream support, video bit rate 200k~8Mbps adjustable rate.
9. Support protocols such as HTTP, TCP/IP, UDP, SMTP, DDNS, DNS, SNTP, BOOTP, DHCP, FTP, NTP, etc.
10. Lens focal length: 3.6/4/6/optional 8MP lens.
11. Diving depth 30 meters.
12. Minimum illumination: 0.001Lux/F1.6 (color), 0Lux (infrared light on).
13. Video output interface: 1 channel 10/100M Ethernet, RJ45 interface.
14. Local storage: Maximum support 32G Micro SD card storage (optional).
15. RS485 interface: 1 channel, support transparent channel connection, support multiple PTZ protocols (optional).
16. Power supply: DC12V, power consumption: <12W, protection level: IP68.
17. Working envirnment: Operating temperature -20 ° C ~ +80 ° C, working humidity 10% ~ 90%
