1. The bullet will cut the infrared laser screen and the system will accurately calculate bullet position.

2. The target consists of two sets of acquisition systems. Each set of acquisition system consists of a combination of curved and linear arrays of laser emitters and 450 receivers.

3. Ring accuracy: 1/10mm (meet the International Shooting Federation Regulation 6.3.2.2).

4. Automatically detect the working status of the main components in the bullet point collecting system, and alarm when problems are found.

5. Has automatic locking and operating temperature control functions.

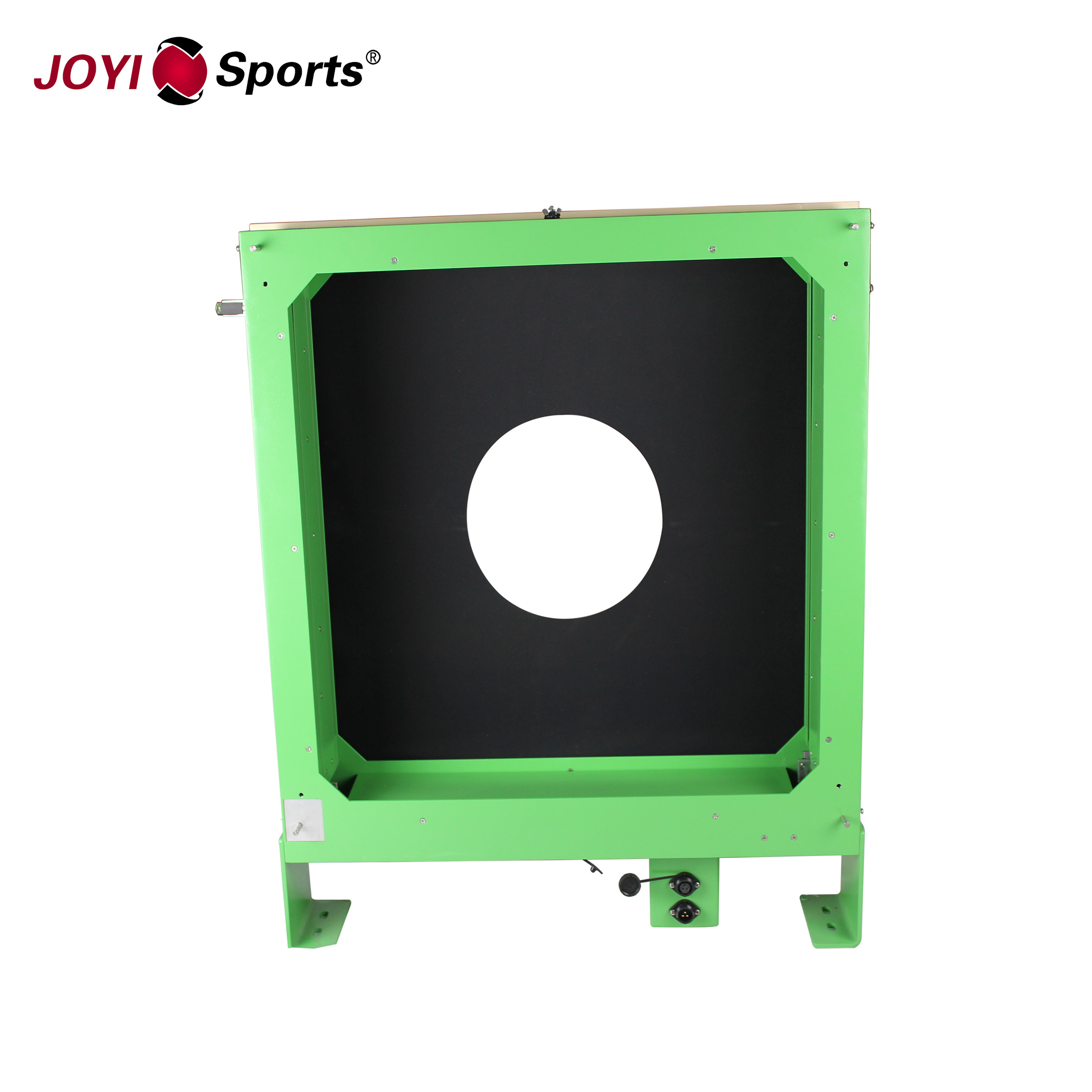

6. Target size: 676mm(L)*676mm(W)*80mm(H); Weight: 16kg

7. Working environment: indoor or semi-outdoor environment

     Working temperature -10 °C -50 °C, relative humidity 20% -90%.

8. Power Supply System:

    Model: JMD35 power supply

    Input: AC100-240V

Output: DC12V, 3.0A

Power load: resistive, has overheating/overcurrent/short circuit protection.
