Timing and Lap Recording System
About the Product
This system can record each participating athlete's starting time and finishing time during a running competition. It also has a function of lap counting. Our RFID Racing System is suitable for the middle/long-distance speed racing such as auto racing, cycling, marathon and running competitions.
This system combines two functions: timing and lap counting.
• Timing: using a photo finish-line camera system.
• Lap recording: using RFID Lap Recording System.
  • 佳能
  • 佳能
  • 佳能
  • 佳能
  • 佳能
  • 佳能
Product Details

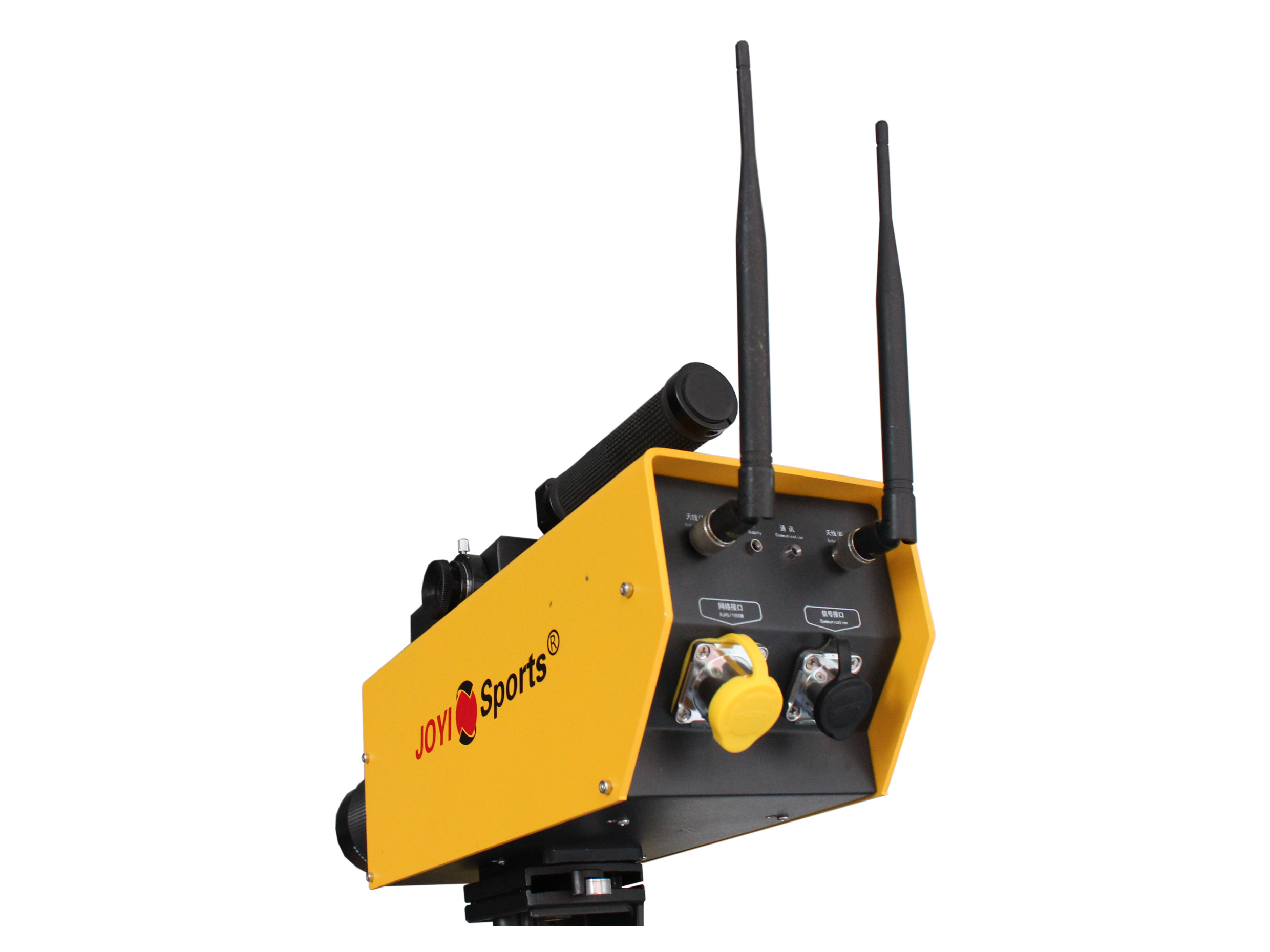

Photo Finish Line Camera System

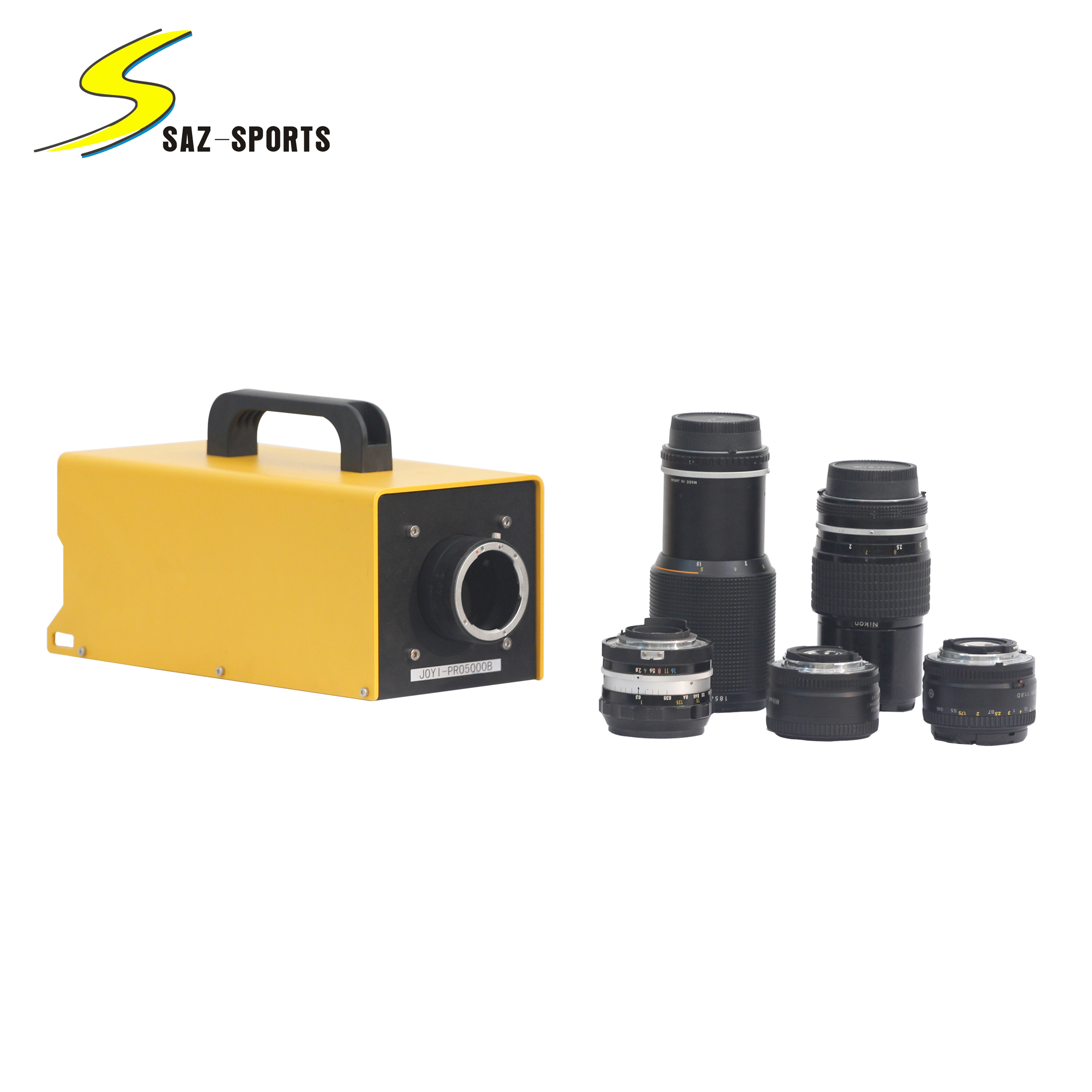

We offer two finish-line cameras: CMOS Colored High-Speed Camera and 3CCD Colored High-Speed Camera

CMOS Colored High-speed Camera

• Line image sampling interval: 1/50000 seconds; interpretation accuracy: 1/5000 seconds.

• The width of the finish line image slit: 7μm.

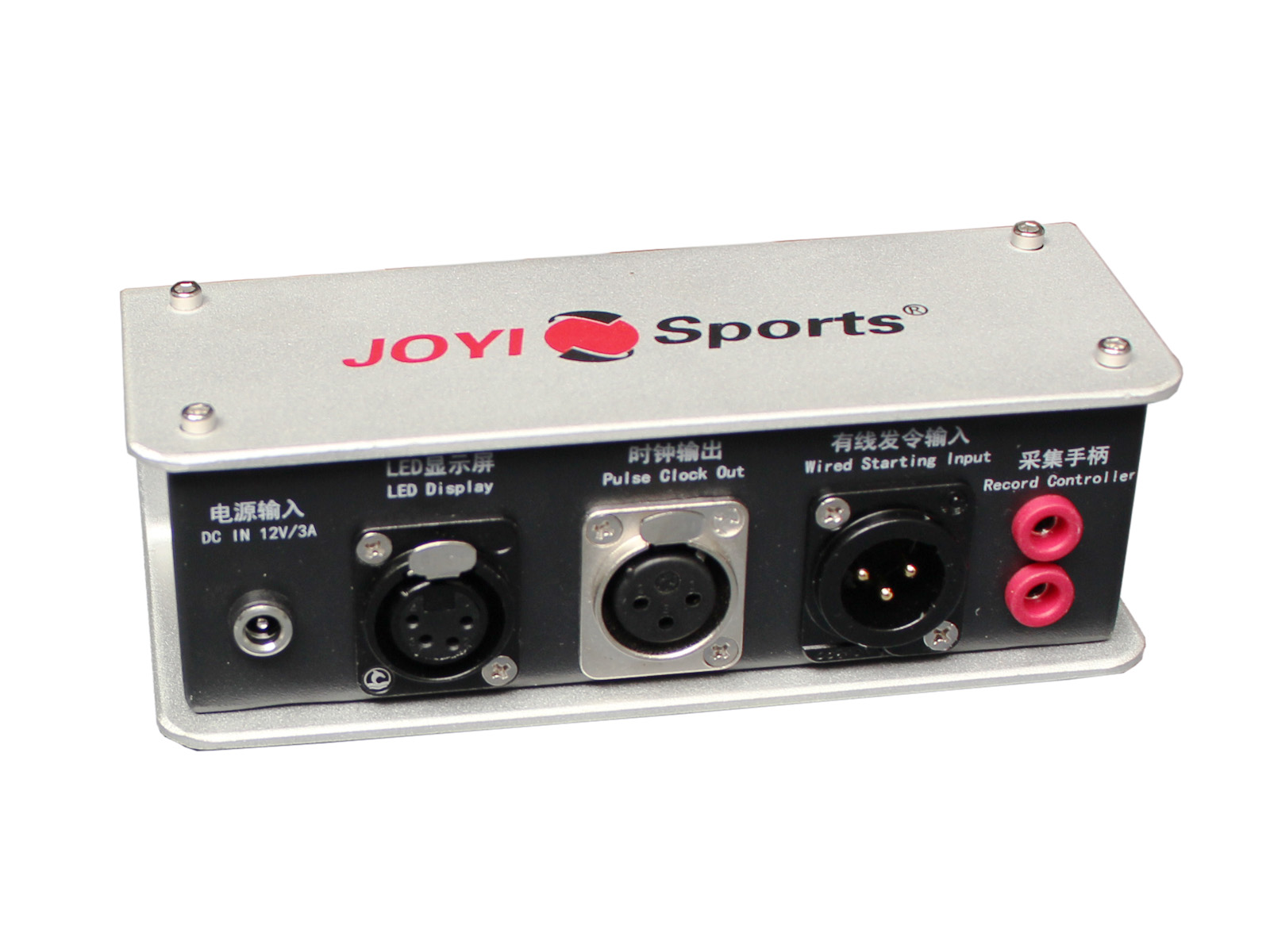

• The system contains a high-speed COMS camera, output module, image capture controller, lens, camera tripod, starting host stand, 3Dmicro-motion tripod head, signal cable, power cable, finish-line image interpretation software, PC, laser printer, and flight case.


3CCD Colored High-speed Camera

• Line image sampling interval: 1/14000 seconds; interpretation accuracy: 1/5000 seconds.

• The width of the finish line image slit: 14μm.

• The system contains a high-speed CCD camera, output module, image capture controller, lens, camera tripod, starting host stand,3D micro-motion tripod head, signal cable, power cable, finish-line image interpretation software, PC, laser printer, and flight case.


Finish-Line Image Interpretation

• Support short/middle/long-distance track events.

• Main features: track competition management, intelligent graphics cutting, manual interpretation, competition real-time interpretation, database real-time connection, image interpretation and processing, image size and brightness adjustment.

• Support WINDOWS XP/7/8/10 Operating system. Easy to operate.

• Automatically generate and save the interpretation image. It is easy to check the accuracy of the results. All results are obtained from the interpretation image.

• Interpretation method: On the software UI, there is a vertical line perpendicular to the time axis. Place that vertical line to the athlete’s specified position, then the result will be generated automatically.

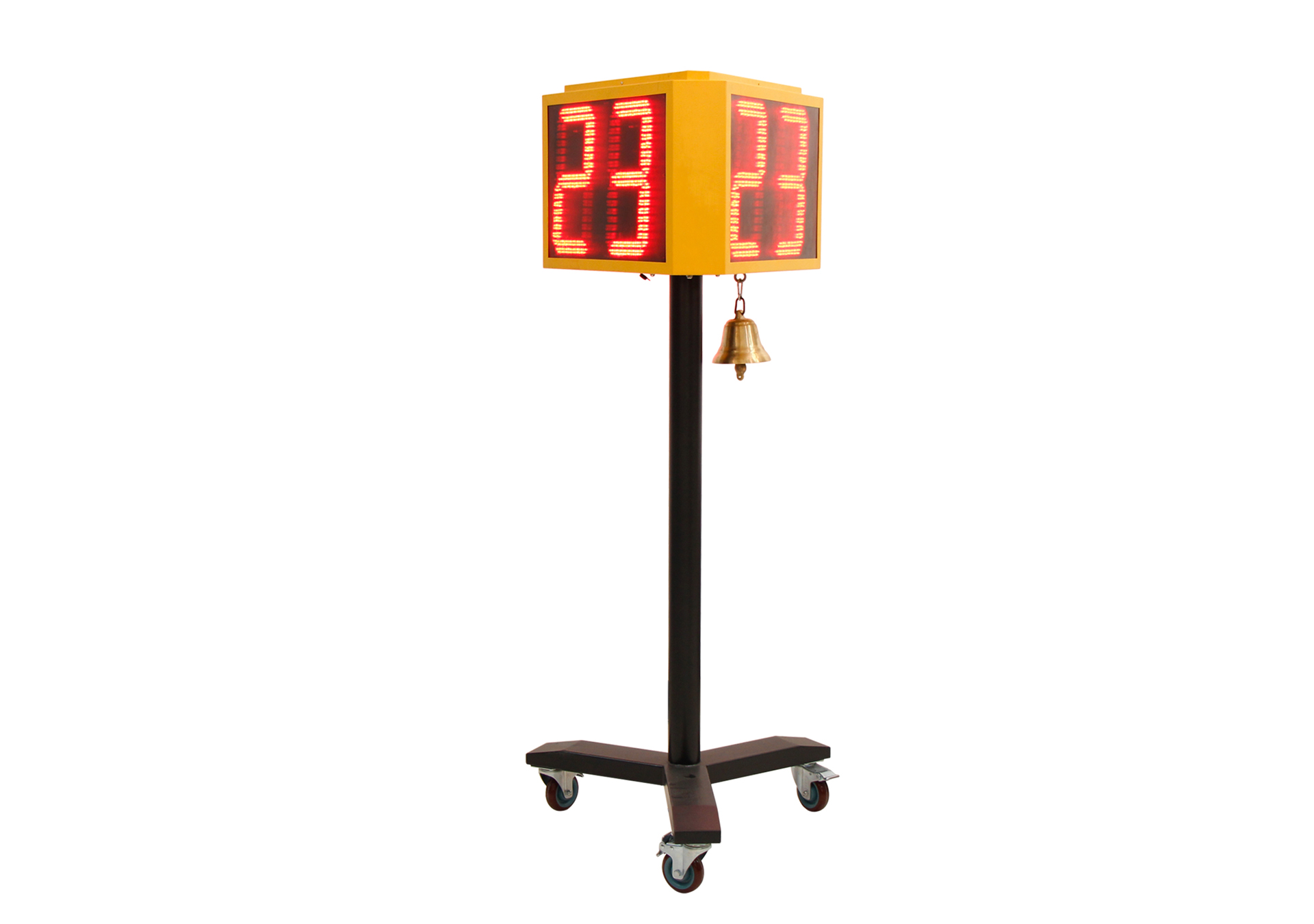

Lap Recording System

•  The system contains PC / Tablet, transponder, and RFID timing software(run on PC).

•  Use PC / Tablet’s Bluetooth module to receive signal sending from the transponder.

•  The minimum requirement for PC / Tablet: Bluetooth 5.0 module. (We also provide Bluetooth 5.0 module for purchase.)

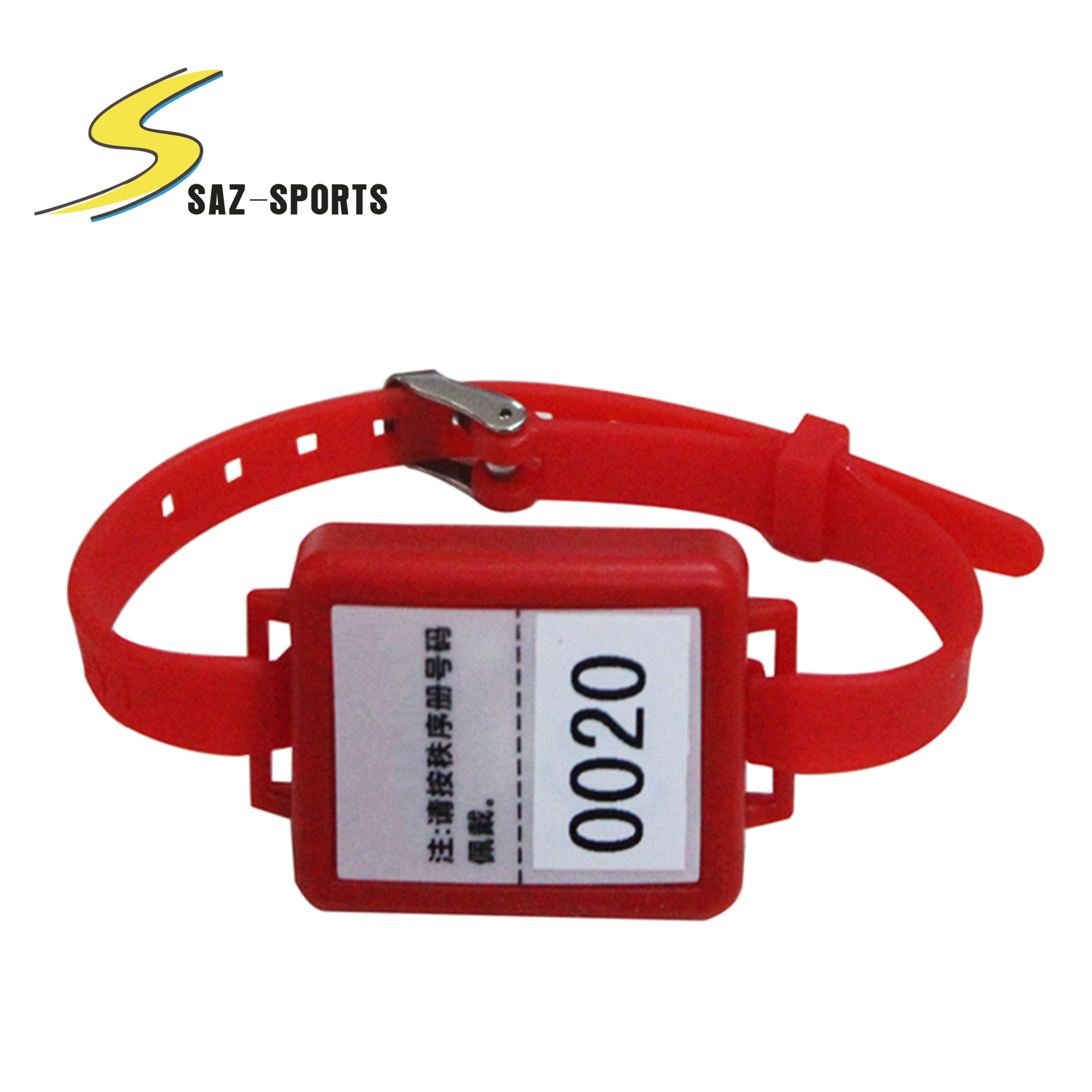

Transponder

• Full PVC design, silicone wrist strap, removable rear panel.

• Way of wearing: can wear a wrist band or shoelace.

• Power supply: built-in CR2032 button battery.

• Uses a four-dimensional low-frequency antenna to receive activation signals from any directions; dual chips increase the reading accuracy.

• A battery power management system can measure the remaining battery power.

• Waterproof rating: IP65.

• Dimensions: 45mm (L) × 35mm (W) × 10mm (H);

   Weight: 0.028kg.

• Data transmission: Bluetooth 5.0, 125Hz.

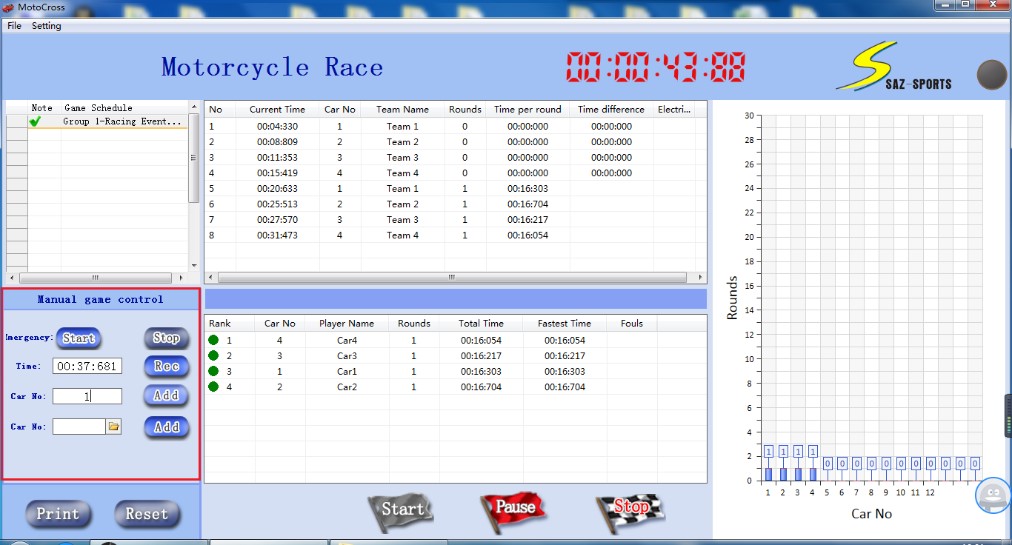

RFID Timing Software

• Real-time display and record each athlete’s remaining laps and the total time use.

• Print results in real-time.
