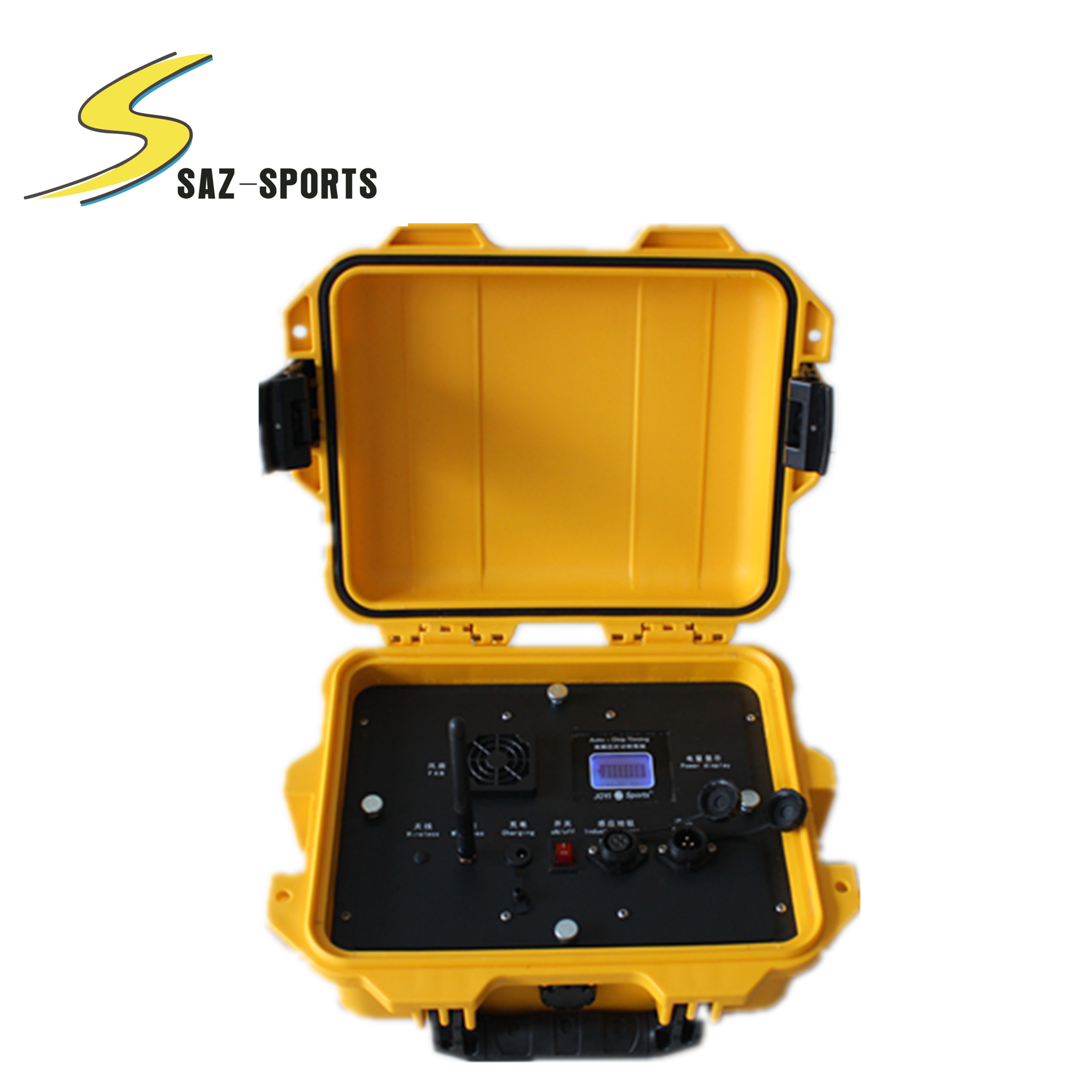

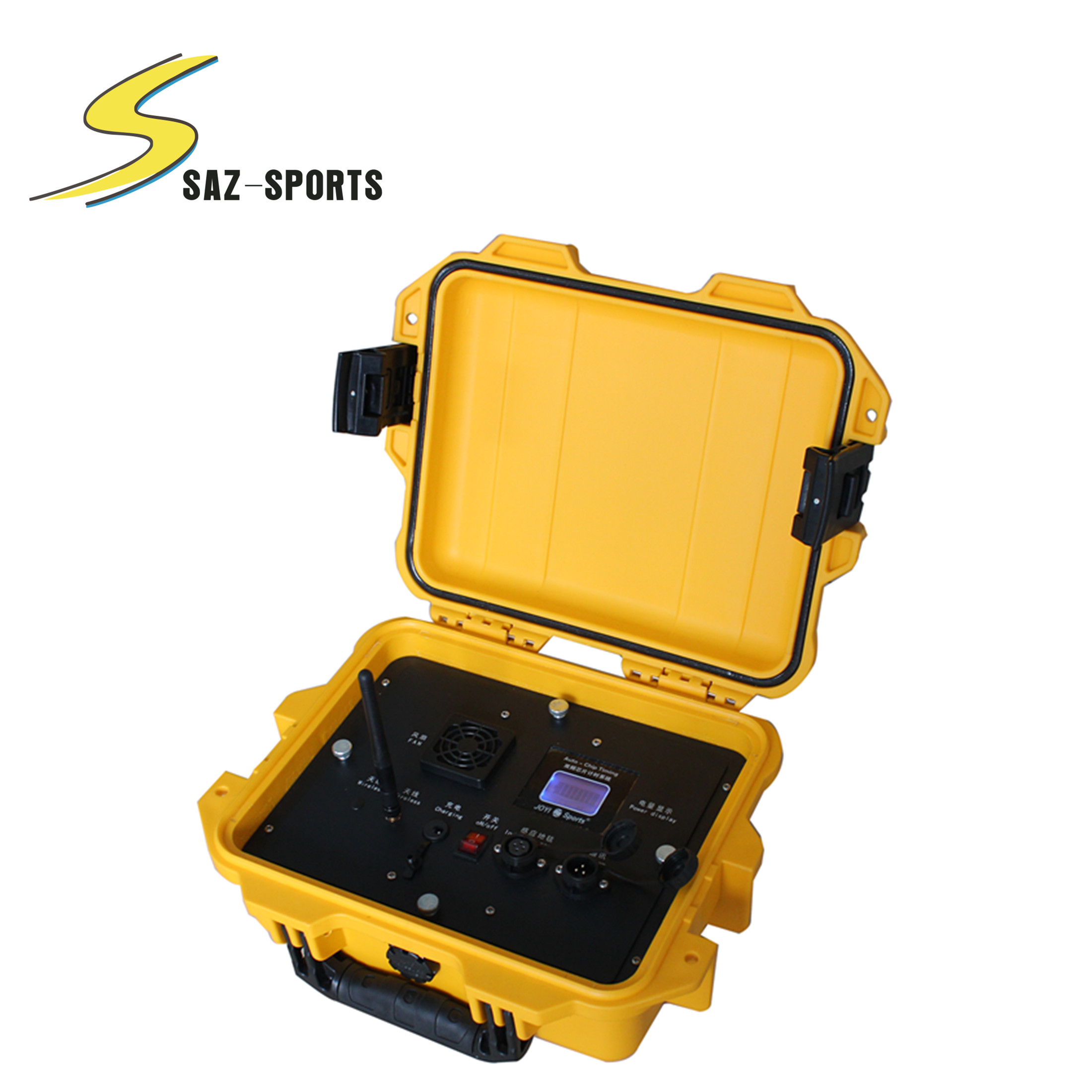

RFID Reader

• Working principle: 125KHZ 2.4GHZ

• Maximum number of readings: 500 reads/second

• Power supply: built-in battery DC12V 4.4A;

  charger: DC14.4V 0.5A

• Data transmission: RS485, Bluetooth 4.2, Bluetooth 5.0, wireless 433MHz.

• The timing is accurate to 0.01 second.

• Working temperature: -15℃-65℃

• Dimension: 300mm(L) × 260mm(W) × 120mm(H);

  Weight: 3.8kg

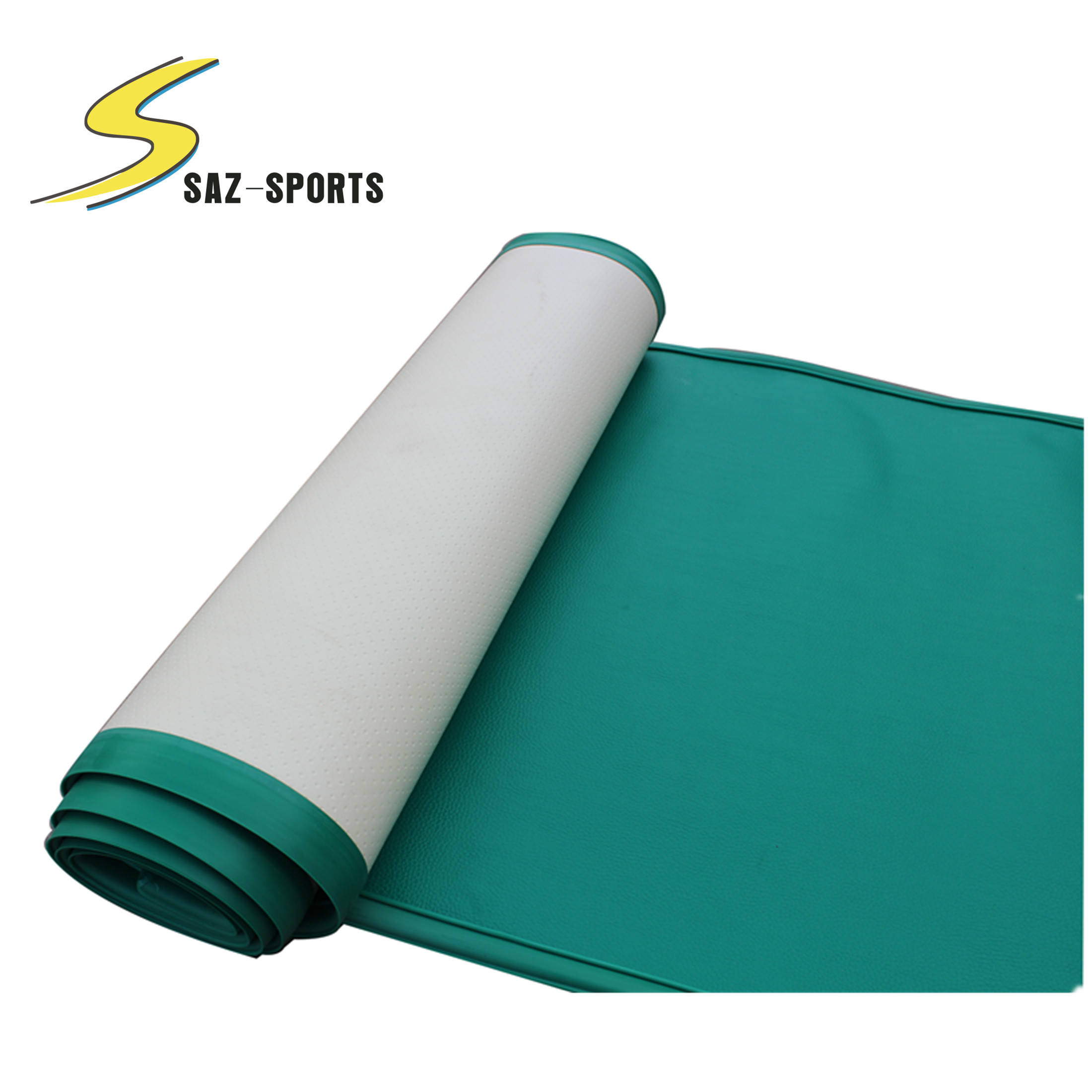

RFID Mat

• PVC material, effective reading width: 1-3 meters

• Data reading angle: 0°- 60°

• Dimensions: 500mm(L) × 80mm(W) × 5mm(H);

  Weight: 4.0 kg.

• Used for timing and lap recording.

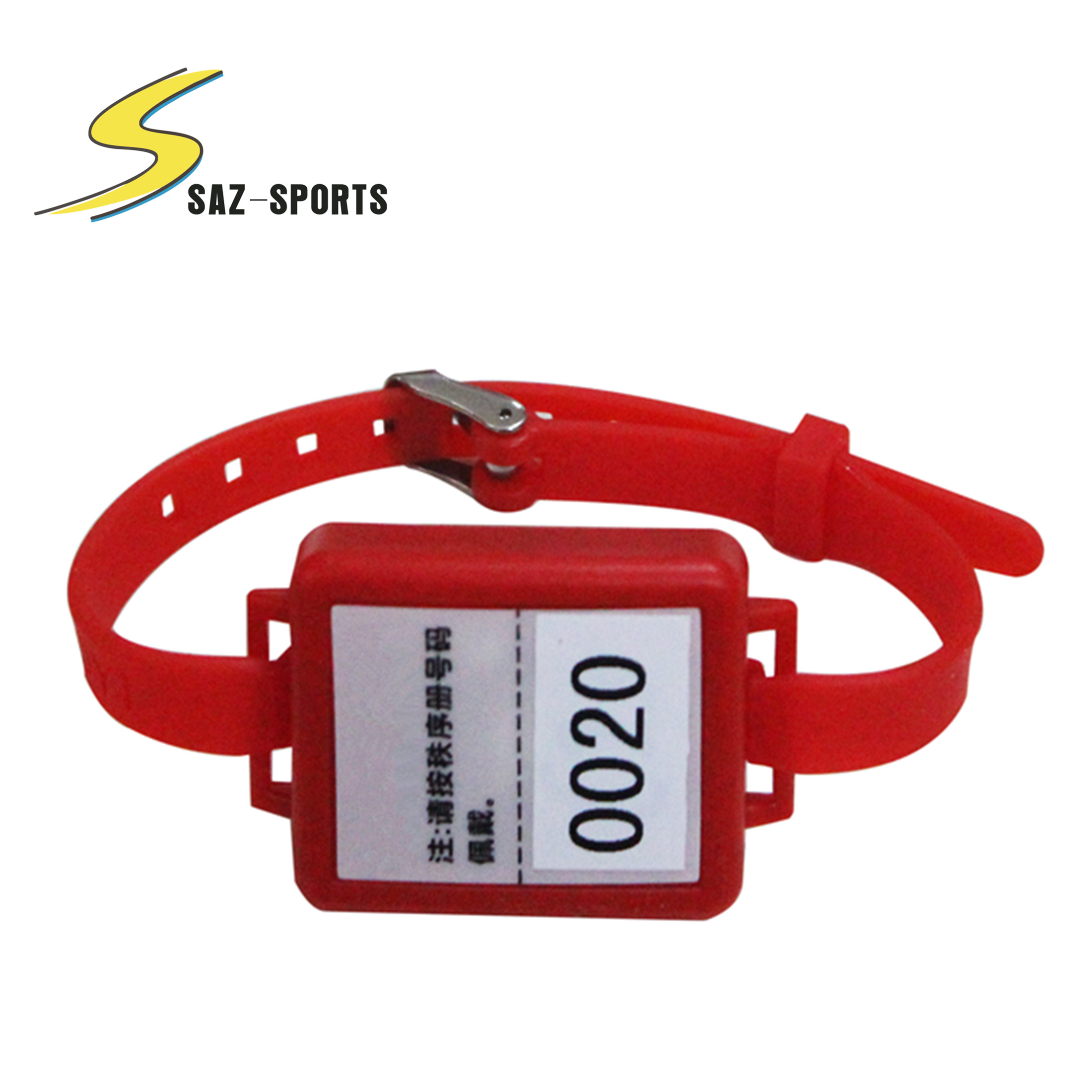

Transponder

• Full PVC design, silicone wrist strap, removable rear panel.

• Way of wearing: can wear a wrist band or shoelace.

• Power supply: built-in CR2032 button battery.

• Uses a four-dimensional low-frequency antenna to receive activation signals from any directions; dual chips increase the reading accuracy.

• A battery power management system can measure the remaining battery power.

• Waterproof rating: IP65.

• Dimensions: 45mm (L) × 35mm (W) × 10mm (H);

  Weight: 0.028kg.

• Data transmission: Bluetooth 5.0, 125Hz.

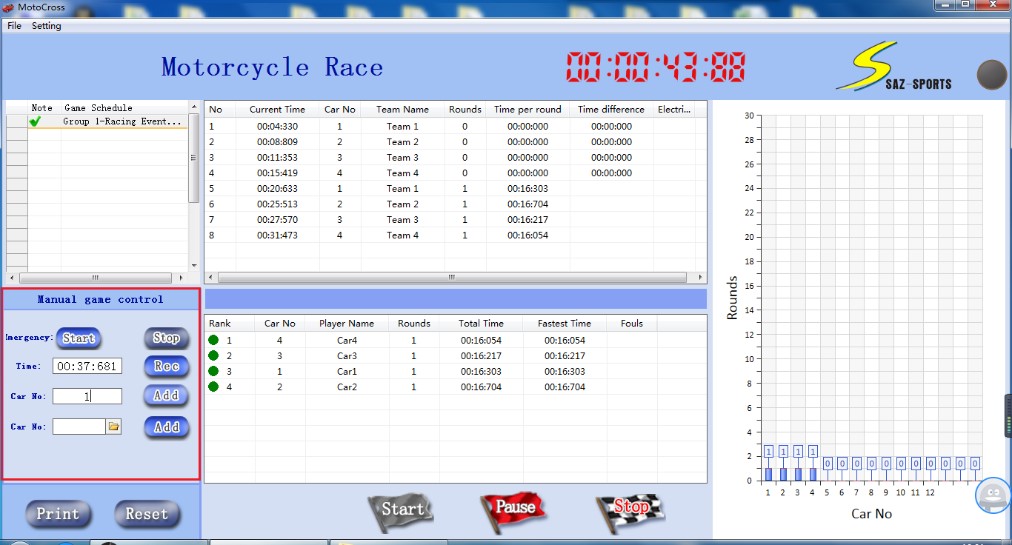

RFID Timing Software

• Real-time display and record each athlete’s remaining laps and the total time use.

• Print results in real-time.
